ssh op switch of router

1. ssh op router


verbind de ssh-PC rechtstreeks op poort gi0/0

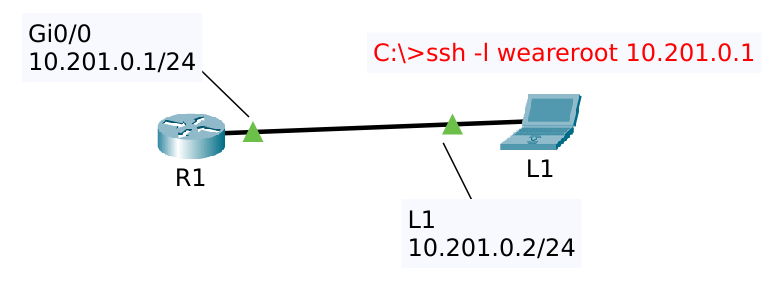

ssh-op-router



!!
!! ssh op R1
!!
enable

conf t

hostname R1
ip domain-name test.be
enable secret ssh12345
crypto key generate rsa

user weareroot secret ssh12345

line vty 0 4
login local
transport input ssh

int Gi0/0
ip addr 10.201.0.1 255.255.255.0
no shut

end

copy run start

!! verbind de PC/laptop met poort Gi0/0 op adres 10.201.0.1



2. ssh op switch

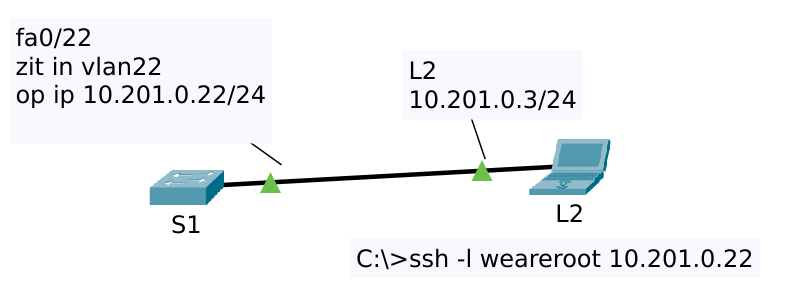

ssh-op-switch-s1
!
! ssh op S1
!
enable

conf t

hostname S1
ip domain-name test.ssh
enable secret sdf12345
crypto key gen rsa

user weareroot secret ssh12345

line vty 0 15
login local
transport input ssh

vlan 22
name ssh

int vlan 22
ip addr 10.201.0.22 255.255.255.0
no shut

int fa0/22
switchport mode access
switchport access vlan 22

end

copy run start

!! verbind de PC/laptop met poort fa0/22
!! op adres 10.201.0.22 van de vlan 22


zie ook ... http://netwerk800.be/switching/secure-switch-config
